產品描述：

★利用多普勒效應原理，自主研發平面天線發射接收電路，智能檢測周圍電磁環境，自動調整工作狀態；

★靜止時超低照明功耗，一般為0.5-2.5W，并且根據環境可調；

★人體或汽車移動進入時，自動感應滿負荷工作，10-18W（0.6或1.2米燈具）

★滿載工作時間：2秒-60秒根據環境可調，感應靈敏度：6-10米；

★日平均功耗：4.8W；(按工作8小時，靜止16小時計，滿負荷10W)

寬電壓輸入，高效率≥0.89(≤100mA時)

★輸入特性：寬電壓、寬頻率輸入、低諧波。

★電氣方面：燈管內置采用非隔離高效恒流驅動電源精度小于2%無溫漂。

★燈管型材：燈管主體采用優質合金材料,不易變形，光源采用鋁基板導熱，散熱效果好。

★燈管光效：光源選用高檔 LED 芯片、多燈珠、光效高、均勻好、無頻閃，長壽命。

★安全方面：設計嚴格按照SAA  UL 標準。

★環保、安全、無污染、符合RoHS 規范。

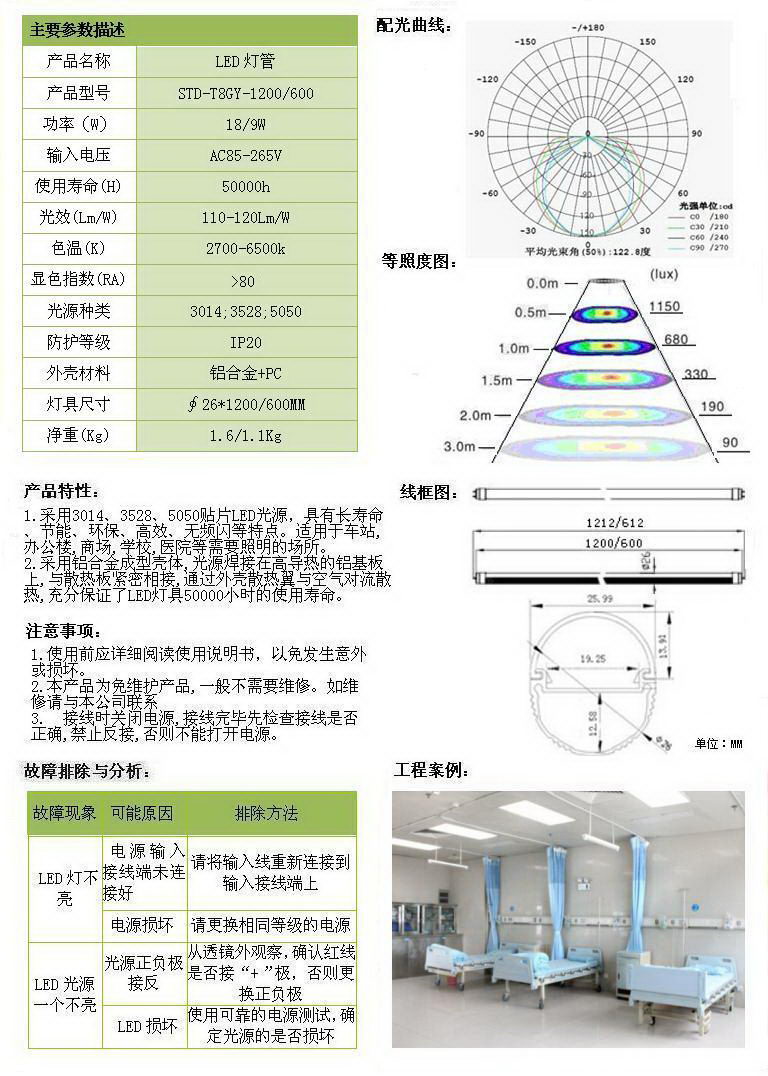

Lamp holder: G13

Beam angle: >160°

Power factor: ≧0.9

LED power/number of LEDs/(LED2835): 0.2W

Total power consumption of lamps: 18W

Central illumination of lamp: 90lux

Correlated color temperature: □2700-3200K □4500-5000K □6000-6500K

Display index: >75

Luminous efficiency: 98.5lm/w

Working environment temperature: -20℃～60℃

Working humidity: 10%~60%RH

Storage temperature: -25℃～60℃

Lamp body and lampshade: aluminum alloy + PC cover (fog)

Protective lighting: IP20

Product net weight: 292G

Net box: 1.7KG

Packing quantity: 50PCS

Gross weight: 15.394KG

Box size: 1260*440*280mm



product description:

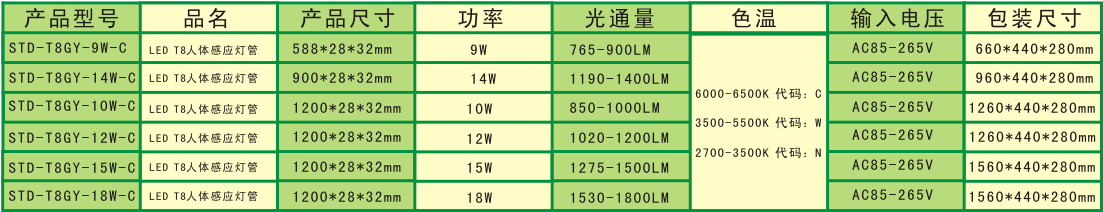

1. Product specifications are: 0.6 meters -1.5 meters

2. When a person or other animal enters, it automatically senses full load work, 19W full load work, sensing sensitivity time: 10 seconds ± 10%,

3. Sensitivity distance: 6-10 meters

 (2) Working mode of LED smart tube

1. Use a human body sensor to control every human body-sensing LED fluorescent tube in the corridor or other specific places. When no people/other animals enter or leave,

All fluorescent lamps are in the off state (customized according to customer requirements), which greatly saves electricity.

(According to past experience, 24-hour electricity-using places such as garages can save about 80% of electricity)

2. When someone/other animal enters and exits, the human body sensor in the corresponding area sends out a signal, and the dormant LED tube is awakened to light up, the power is full power, and it lights up.

The brightness reaches the brightness of 60W ordinary fluorescent lamp, which is convenient for car owners to stop. When the car or people are moving in the sensing area, the LED fluorescent tube always keeps on.

After the car or person leaves the sensing area for about 30 seconds, the LED lights automatically re-enter the non-lighting state, and the power consumption of each tube is between 0.9-1.0W (according to customer requirements

Request customization)



(3) Installation requirements and maintenance

 1. The product installation is just like the installation method of ordinary household fluorescent lamps.

2. The power must be cut off before installation, please do not operate with power.

 3. Make sure that the product is firmly installed before powering on
