product description:

★Input characteristics: wide voltage, wide frequency input, low harmonics.

★Electrical aspect: The built-in lamp adopts a non-isolated high-efficiency constant current drive power with an accuracy of less than 2% and no temperature drift.

★L(fēng)amp tube profile: The tube body is made of high-quality alloy material, which is not easy to be deformed. The light source uses an aluminum substrate for heat conduction and good heat dissipation.

★L(fēng)amp light effect: The light source uses high-grade LED chips, multiple lamp beads, high light efficiency, good uniformity, no flicker, and long life.

★Safety: The design strictly follows the SAA UL standard.

★Environmental protection, safety, pollution-free, and RoHS-compliant.

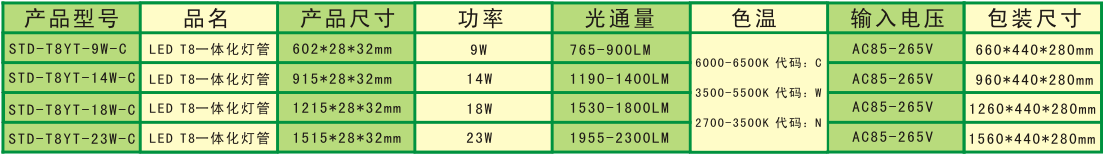

Product Specifications:

Product model: STD-T8YT-18W-C

Power: 9W/10W/16W/18W

Lamp holder: G12

Beam angle: >160°

Luminous flux: 100LM /W

Power factor: ≧0.9

LED power/number of LEDs/(LED2835): 0.2W/PCS

Total power consumption of lamps: 23W

Central illumination of lamp: 90lux

Correlated color temperature: □2700-3200K □4500-5000K □6000-6500K

Display index: >75

Luminous efficiency: 98.5lm/w

Working environment temperature: -20℃～60℃

Working humidity: 10%~60%RH

Storage temperature: -25℃～60℃

Lamp body and lampshade: aluminum alloy + PC cover (fog)

Protective lighting: IP20

Packing quantity: 50PCS



Applications:

This product is widely used in factory workshops, shopping malls, supermarkets, hotels, entertainment venues, subway stations, office buildings, exhibition halls, advertising light boxes

Energy-saving renovation projects for places requiring high-standard lighting.



product description:

★The lamp body is made of aerospace-quality aluminum alloy and PC instead of traditional glass, which is more sturdy and reliable, and has strong heat dissipation;

★The power supply adopts a wide voltage, IC constant current solution, adapts to the global power grid, does not have any flicker, and creates a beautiful environment;

★The lamp beads are packaged independently, using imported chips and first-class raw materials, perfectly matching the power supply parameters to achieve the best practical state;

★The PC cover is independently developed and produced. Imported raw materials will not turn yellow after a long time. It has good light transmittance and diffusibility, uniform light output, and no color difference;

★Adopt PCB into aluminum shell structure design, good heat dissipation performance, beautiful appearance and convenient installation;

★Environmental protection and low energy consumption, directly replacing traditional T8 fluorescent lamps, saving energy by more than 70%, and the life span is more than 40,000 hours.


(3) Installation requirements and maintenance

 1. The product installation is just like the installation method of ordinary household fluorescent lamps.

2. The power must be cut off before installation, please do not operate with power.

 3. Make sure that the product is firmly installed before powering on
