LED street light

Your Current Location ：Home ? Product ? LED lighting products ? LED street light ? LED street lamp series-1-2

Name：LED street lamp series-1-2

Details

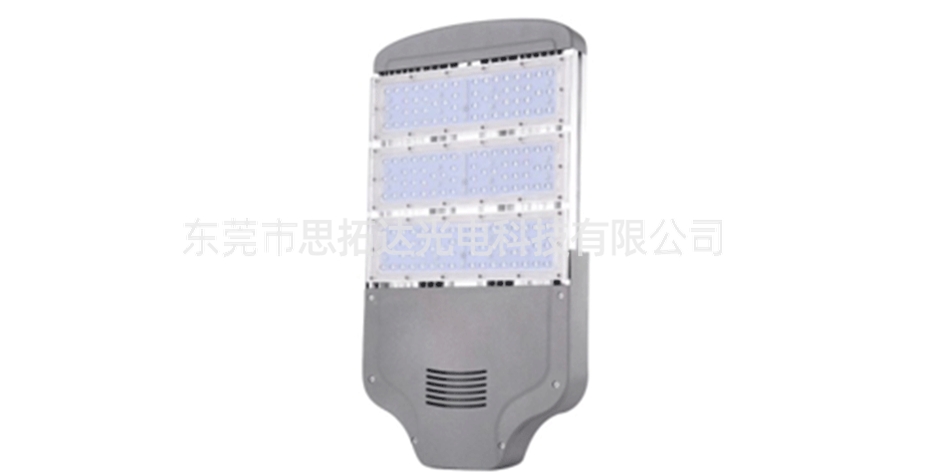

Fugui series LED street lamp (modular type)
Module quantity: 2 / 3 / 4 / 5 / 6pcs
Color temperature of light source: 3000K / 4000K / 5000K / 6000K
Nominal power: 60W / 90W / 120W / 150W / 180W
Expansion power: 210W (7 modules) 240W (8 modules)
Main material: stretched aluminum main body / die-casting aluminum sealing plate / UV resistant high strength PC lens
Surface treatment: the main body of stretched aluminum is anodized / the surface of die-casting aluminum is coated with powder and baked paint
Protection grade against electric shock: class I protection grade: IP65 light pole interface: 50 / 60mm
Appearance dimension: 2 modules 468 * 305 * 65mm 3 modules 561 * 305 * 65mm
4 modules 654 * 305 * 65mm 5 modules 748 * 305 * 65mm
6 modules 841 * 305 * 65mm
Power supply working voltage: ac100-265v 50 / 60Hz
Pf > 0.95 power efficiency > 90%
Driving mode: multiple constant current driving
(PWM 0-10V dimming)
Working environment: temperature - 40 ～ 55 ℃
Humidity 5% - 95%
