LED street light
LED street lamp series-2-1

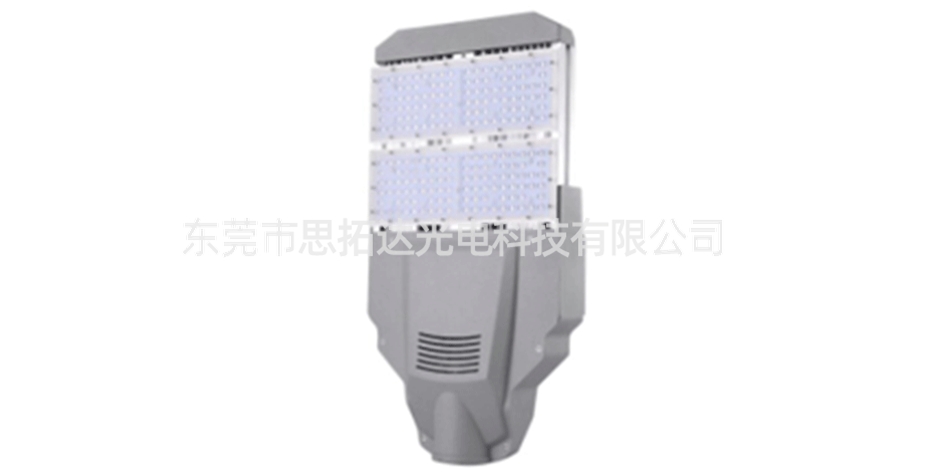

Name:LED street lamp series-2-1

Details
Transformer series LED street lamp (Modular)
Module quantity: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8pcs
Color temperature of light source: 3000K / 4000K / 5000K / 6000K
Nominal power: 30W / 60W / 90W / 120W / 150W / 180W
Expansion power: 210W (7 modules) 240W (8 modules)
Main material: stretched aluminum main body / die-casting aluminum sealing plate / UV resistant high strength PC lens
Surface treatment: the main body of stretched aluminum is anodized / the surface of die-casting aluminum is coated with powder and baked paint
Protection grade against electric shock: class I protection grade: IP65 light pole interface: 50 / 60mm
Appearance dimension: 1 module 425 * 305 * 95mm 2 modules 518 * 305 * 95mm
3 modules 611 * 305 * 95mm 4 modules 704 * 305 * 95mm
5 modules 798 * 305 * 95mm 6 modules 891 * 305 * 95mm
7 modules 984 * 305 * 95mm 8 modules 1078 * 305 * 95mm
Power supply working voltage: ac100-265v 50 / 60Hz pf > 0.95 power efficiency > 90%
Driving mode: multiple constant current drive (PWM 0-10V dimming)
Working environment: temperature - 40-55 ℃ humidity 5% - 95%


Main specifications and technical parameters of street lamp

產品系列

LD-30

LD-60

LD-90

LD-120

LD-150

LD-180

LD-210

LD-240

LED數量

30PCS

60PCS

90PCS

120PCS

150PCS

180PCS

210PCS

240PCS

LED芯片

臺灣晶元/普瑞

工作電壓

AC100-265V 50/60Hz

功率因素

PF>0.95

轉換效率

>90%

輸入功率

30W

60W

90W

120W

150W

180W

210W

240W

總光通量

3600LM

7200LM

10800LM

14400LM

18000LM

21600LM

25200LM

28800LM

色溫

3000K/4000K/5000K/6000K

外型尺寸(mm

425*305*95

518*305*95

611*305*95

704*305*95

798*305*95

891*305*95

984*305*95

1078*305*95

二次配光

蝙蝠形(透鏡發光角度90*120°

控制方式

內置時控控制/恒流電源驅動控制/PWM0-10V 調光控制

適用場所

工業園區/生活小區

次干道

主干道/快速/高桿燈
