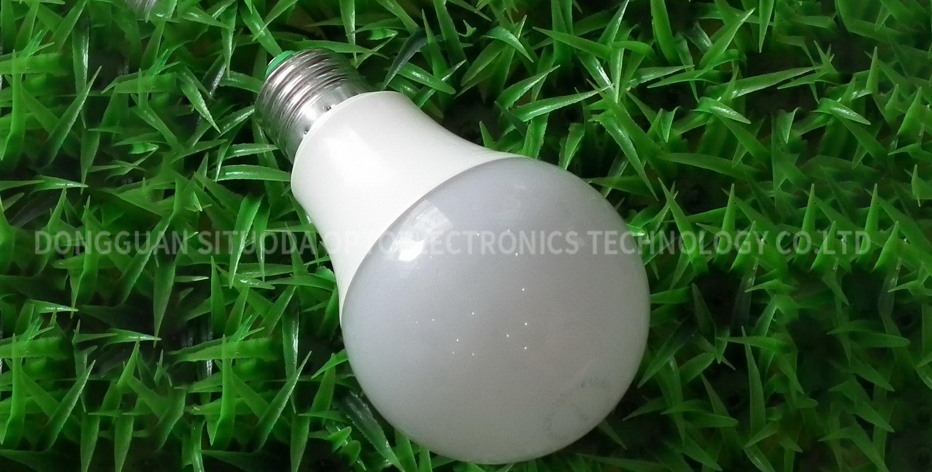

Product main parameter description:

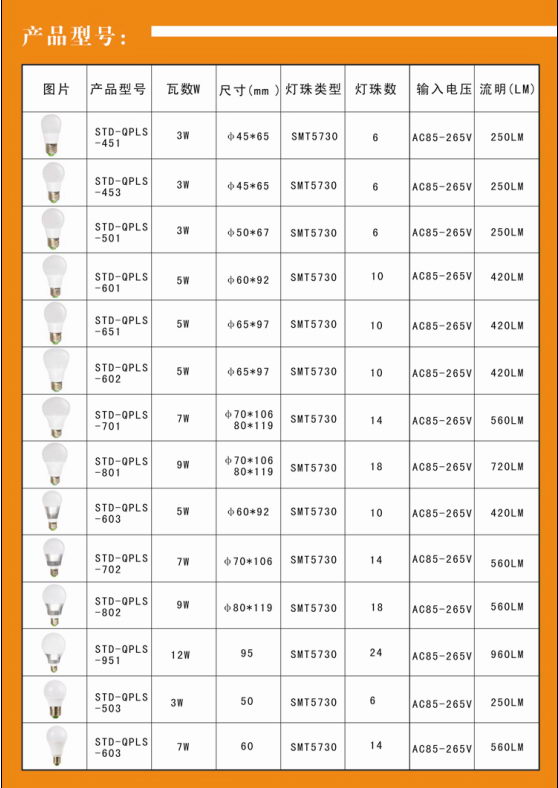

Product model: STD-QPLS-5W-C-05

Rated power (W): 3W/5W/7W/9W

Input voltage: AC90-265V

Service life (H): 50000H

Color temperature (K): 2700-6500K

Luminous flux: 525-945LM

Light source particles: 6 beads / 10 beads / 14 beads / 18 beads (5730), anti-lumen package

Protection level: IP42

Housing material: ABS imitation ceramic + PC cover

Lamp size: Φ45*65mm Φ60*92mm Φ70*106mm

Lamp connector: E14/E27

Packing quantity: 100PCS

Color box size: L61*W61*H117 L61*W61*128

Outer box size: L308*W308*H471mm L308*W308*H515mm

Product gross weight: 140g/PCS

Gross weight per box: 15.7KG

Box paper material: K=B strengthen



product description:

1. Lamp profile: imported PC transparent cover, high transmittance up to 90%, imported chip, multi-lamp bead solution, ensure brightness, uniform illumination without dark area, high quality aluminum alloy lamp bead, high thermal conductivity, heat dissipation Good, guarantee lamp life, independent resistance constant current drive, pressure electrolytic capacitor, work more stable, ABS imitation ceramic lamp body, ceramic feel, exquisite appearance, anti-mosquito design
2, efficient heat dissipation, corrosion resistance, anti-rust, high temperature resistance, beautiful appearance, light and smart, improve the overall luminous efficiency of the bulb, uniform light guide, no dark areas, no glare.

3, the shell has good heat dissipation, high temperature resistance, and good anti-seismic effect.

4, the light is soft, the luminous efficiency is high, that is, it is bright, no flash, no light spots, effectively protect the eyes.

5, no heat radiation, no harmful metal mercury, green and environmental protection.

6. Safety: The design is strictly in accordance with the SAA UL standard.

7. Environmentally friendly, safe, non-polluting and RoHS compliant.

Scope of application:

 Widely used in homes, brand stores, shopping malls, hotels, hotels, office buildings and home lighting.



Installation Precautions:

1. The installation of the product must be a licensed professional electrician. 2. Check the integrity of the product when taking it out of the box.
3, the product and flammable materials to ensure a distance of at least 0.2m, to ensure that the installed zenith has a gap of 2 cm high, the lamps can not be installed in the zenith or the wall of the heat source, pay attention to low voltage and high Piezoelectric wires are routed separately.
4. The connection on the luminaire can be fixed from the hole through the wire and the wire behind the luminaire. It must be fixed firmly. 5. Make sure that the power cord of the luminaire has sufficient length and should not be subjected to tension or tangential force. Avoid excessive tension when installing the wiring of the luminaire. Do not tie the connection. The output connection should be distinguished and not confused with other lamps.
6. After installation, connect the low voltage plug of the lamp to the low voltage plug of the switch power supply.

7. Connect the switch power supply tail cable of the luminaire to the mains. Usually the brown (black) line is the live line and the blue line is the zero line.

8, to use the LED driver for the lamp, do not mix with other lamps.

9. Do not tear off the lamp power supply and the nameplate of the drive.







Product use precautions:

1. The product can only be used outside the package.

2. Before use, please confirm whether the product has been damaged during transportation. If it is damaged, it cannot be installed and used.

3, do not try to repair their own, only by professional engineers to repair.

4, packaging materials should be far away from children, to prevent children from playing with suffocation!

5, to prevent small parts of the product, causing children to swallow.

6. Keep children away from the product, and don't let children touch live equipment.

7. Avoid long-term direct view of the LED's light-emitting surface. Do not use the reflected LED light to illuminate other people's eyes.

8. Do not cover anything on the product.

9. Keep away from open flames or hot objects.

10. The product has passed the service period and needs to be repaired or retired.



Maintenance notes:

1. Always turn off the power before cleaning the fixture.

2. Clean with a dry or drier cloth.

3. Do not wipe the lamp with alcohol.
